11600020 – Winding drum NL-12

Name: 11600020 - Winding drum NL-12
SKU: 11600020
Availability: InStock

Shop HomeProduct CategoriesBalancing unitDrums11600020 – Winding drum NL-12

Price per pair
Packing: 20 – Weight: 0,718 kg per pair.

SKU: 11600020 Categories: Balancing unit, Drums Tag: Sectional Door Accessories

Description

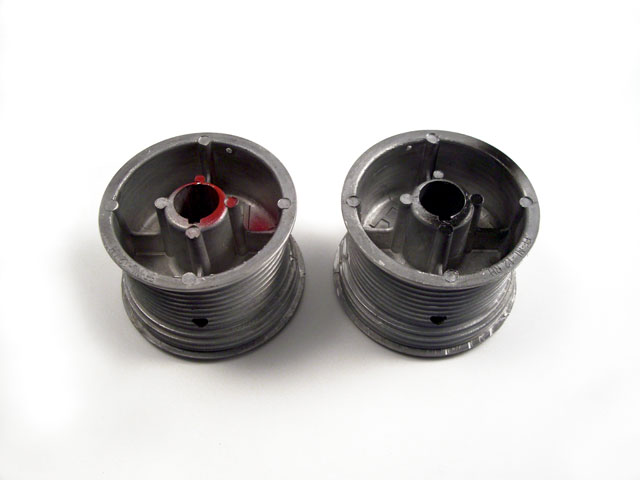

Winding drum for sliding system S1, S2. Max. cable diameter: 4 mm. Max. door weight: 340 kg per pair. Max. drum diameter: 124 mm. Max. lift height: 3680 mm. Drum supplied with 2 safety windings. Spring calculation as for 400-12. Right (black) and left (red) couple.

Packing: 20 – Weight: 0,718 kg per pair.
